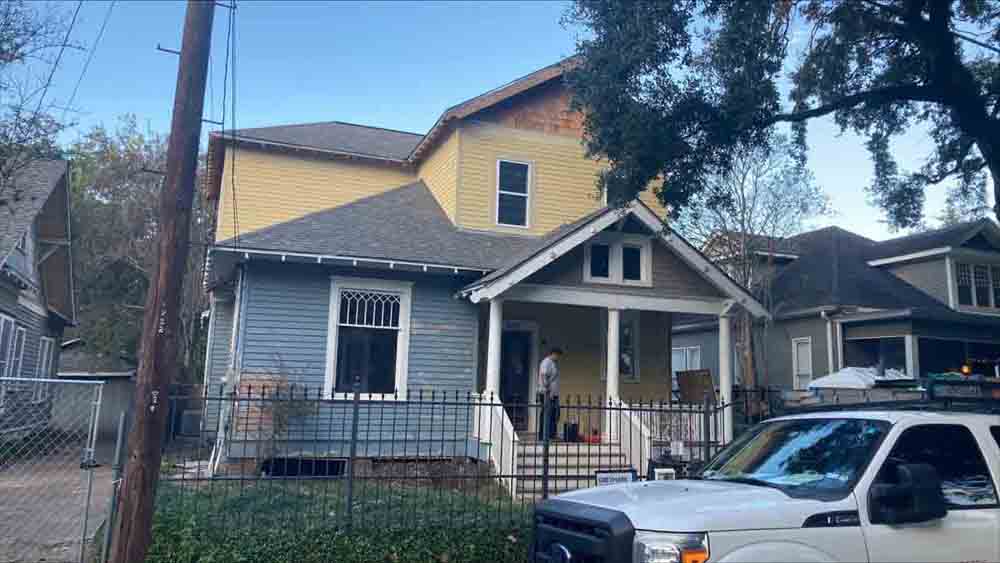

1222 W Drew St. Houston TX, 77006 – Insulation

Insulation in your home provides resistance to heat flow and lowers your heating and cooling costs. Properly insulating your home not only reduces heating and cooling costs, but also improves comfort.

To understand how insulation works it helps to understand heat flow, which involves three basic mechanisms — conduction, convection, and radiation. Conduction is the way heat moves through materials, such as when a spoon placed in a hot cup of coffee conducts heat through its handle to your hand. Convection is the way heat circulates through liquids and gases, and is why lighter, warmer air rises, and cooler, denser air sinks in your home. Radiant heat travels in a straight line and heats anything solid in its path that absorbs its energy.

Most common insulation materials work by slowing conductive heat flow and convective heat flow. Radiant barriers and reflective insulation systems work by reducing radiant heat gain. To be effective, the reflective surface must be in contact with an air space.

Regardless of the mechanism, heat flows from warmer to cooler areas until there is no longer a temperature difference. In your home, this means that in winter, heat flows directly from all heated living spaces to adjacent unheated attics, garages, basements, and especially to the outdoors. Heat flow can also move indirectly through interior ceilings, walls, and floors–wherever there is a difference in temperature. During the cooling season, heat flows from the outdoors to the interior of a house.

To maintain comfort, the heat lost in the winter must be replaced by your heating system and the heat gained in the summer must be removed by your cooling system. Properly insulating your home will decrease this heat flow by providing an effective resistance to the flow of heat.

An insulating material’s resistance to conductive heat flow is measured or rated in terms of its thermal resistance or R-value — the higher the R-value, the greater the insulating effectiveness. The R-value depends on the type of insulation, its thickness, and its density. The R-value of most insulations also depends on temperature, aging, and moisture accumulation. When calculating the R-value of a multilayered installation, add the R-values of the individual layers.

Installing more insulation in your home increases the R-value and the resistance to heat flow. In general, increased insulation thickness will proportionally increase the R-value. However, as the installed thickness increases for loose-fill insulation, the settled density of the product increases due to compression of the insulation under its own weight. Because of this compression, loose-fill insulation R-value does not change proportionately with thickness. To determine how much insulation, you need for your climate, consult a local insulation contractor.

The effectiveness of an insulation material’s resistance to heat flow also depends on how and where the insulation is installed. For example, insulation that is compressed will not provide its full rated R-value. The overall R-value of a wall or ceiling will be somewhat different from the R-value of the insulation itself because heat flows more readily through studs, joists, and other building materials, in a phenomenon known as thermal bridging. In addition, insulation that fills building cavities reduces airflow or leakage and saves energy.

Unlike traditional insulation materials, radiant barriers are highly reflective materials that re-emit radiant heat rather than absorbing it, reducing cooling loads. As such, a radiant barrier has no inherent R-value.

Although it is possible to calculate an R-value for a specific radiant barrier or reflective insulation installation, the effectiveness of these systems lies in their ability to reduce heat gain by reflecting heat away from the living space.

The amount of insulation or R-value you’ll need depends on your climate, type of heating and cooling system, and the part of the house you plan to insulate. To learn more, see our information on adding insulation to an existing house or insulating a new house. Also, remember that air sealing and moisture control are important to home energy efficiency, health, and comfort.

Use the following map to determine your climate zone and then the following tables to estimate the required R-values. See the 2021 International Energy Conservation Code for more information on climate zones.

Alaska climate zones:

• 7 – Aleutians East
• 7 – Aleutians West
• 7 – Anchorage
• 7 – Bethel
• 7 – Bristol Bay
• 8 – Denali
• 7 – Dillingham
• 8 – Fairbanks North Star
• 6 – Haines
• 6 – Juneau
• 7 – Kenai Peninsula
• 5 – Ketchikan Gateway
• 6 – Kodiak Island
• 7 – Lake and Peninsula
• 7 – Matanuska-Susitna
• 8 – Nome
• 8 – North Slope
• 8 – Northwest Arctic
• 5 – Prince of Wales-Outer Ketchikan
• 5 – Sitka
• 6 – Skagway-Hoonah-Angoon
• 8 – Southeast Fairbanks
• 7 – Valdez-Cordova
• 8 – Wade Hampton
• 6 – Wrangell-Petersburg
• 7 – Yakutat
• 8 – Yukon-Koyukuk

Zone 1 includes Hawaii, Guam, Puerto Rico, and the Virgin Islands.

*Note: In the table above, CI stands for “continuous insulation” that is applied to the exterior of the wall assembly just inside the cladding.

Whenever exterior siding is removed on an uninsulated wood-frame wall:

• Drill holes in the sheathing and blow insulation into the empty wall cavity before installing the new siding, and
• Add the amounts of continuous insulation recommended in the table above.

Whenever exterior siding is removed on an insulated wood-frame wall:

• Add the amounts of continuous insulation recommended in the table above.

To choose the best insulation for your home from the many types of insulation on the market, you’ll need to know where you want or need to install the insulation, and what R-value you want the installation to achieve. Other considerations may include indoor air quality impacts, life cycle costs, recycled content, embodied carbon, and ease of installation, especially if you plan to do the installation yourself. Some insulation strategies require professional installation, while homeowners can easily handle others.

Insulation materials run the gamut from bulky fiber materials such as fiberglass, rockwool, cellulose, and natural fibers to rigid foam boards to sleek foils. Bulky materials resist conductive heat flow in a building cavity. Rigid foam boards trap air or another gas in their cells to resist conductive heat flow. Highly reflective foils in radiant barriers and reflective insulation systems reflect radiant heat away from living spaces, making them particularly useful in cooling climates. Other less common materials such as cementitious and phenolic foams and perlite are also available.
